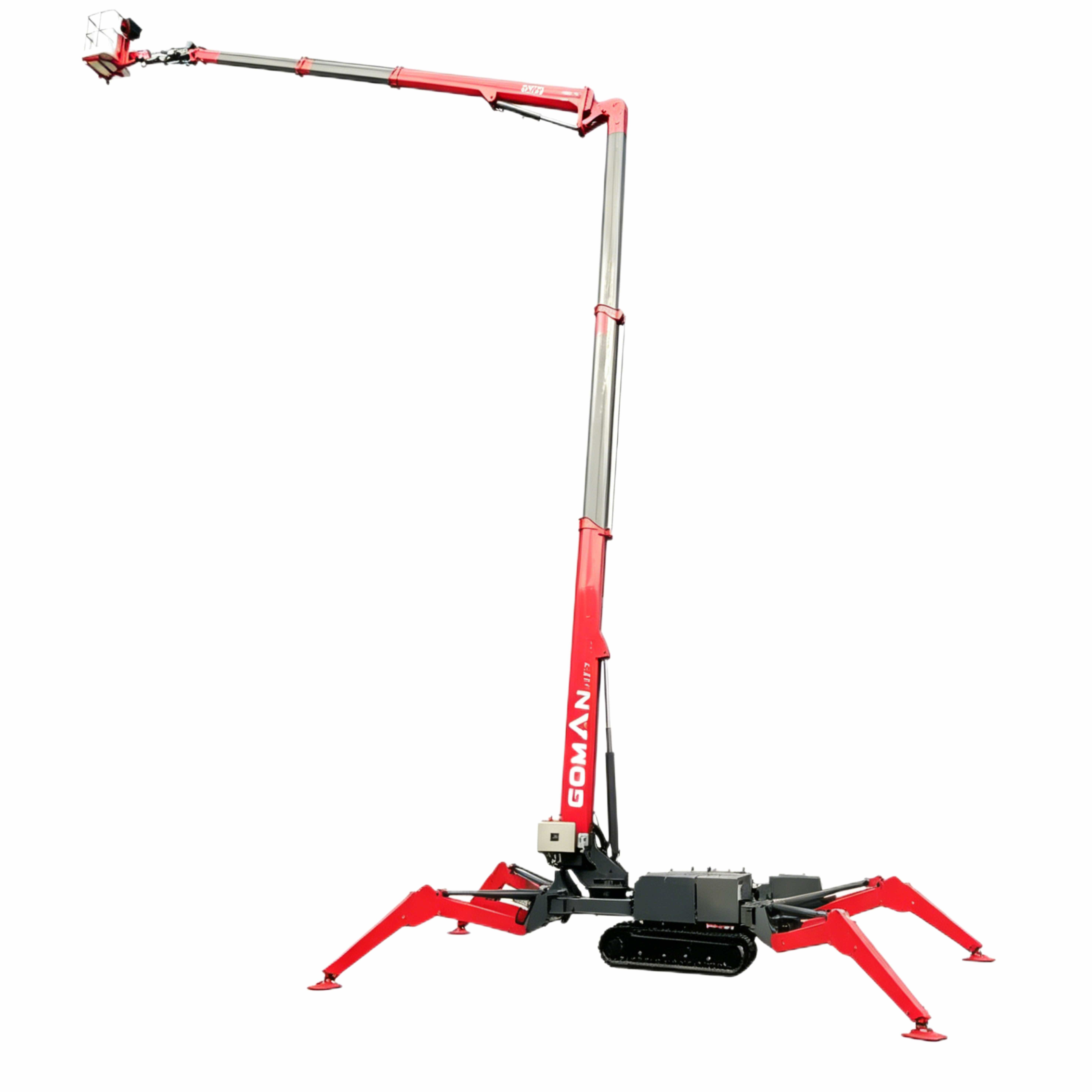

Articulated Spider Lift - X30
Category
Keyword
Articulating Spider Lift,Spider Lift
Max Working Height: 29.50m
Max Working Radius: 12.90m
Safe Working Load: 200kg
Overall Weight: 4950kg
- DESCRIPTION
- Standard
- Application Cases
-
Parameter/Model X30 Max. Working Height 30.00m Max. Platform Height 28.00m Load Capacity 300kg Max. Horizontal Reach 14.50m Platform Rotation 180° Turret Rotation 360° continuous Work Platform Size 1.8/2.0×0.8/0.7×1.1m (customizable work basket size) Stowed Length 5.95m Stowed Width 1.00m Stowed Height 2.00m Travel Speed 0-2.0km/h (0-0.55m/s) Max. Working Gradeability 20% Max. Climbing Gradeability 30% Total Weight 5450kg Power 18.2kw Motor 380V/4kw -
Power Configuration Diesel engine + Battery / Lithium battery + 220/380V AC (3-power or 2-power) -
Articulated Spider Lift - X30
