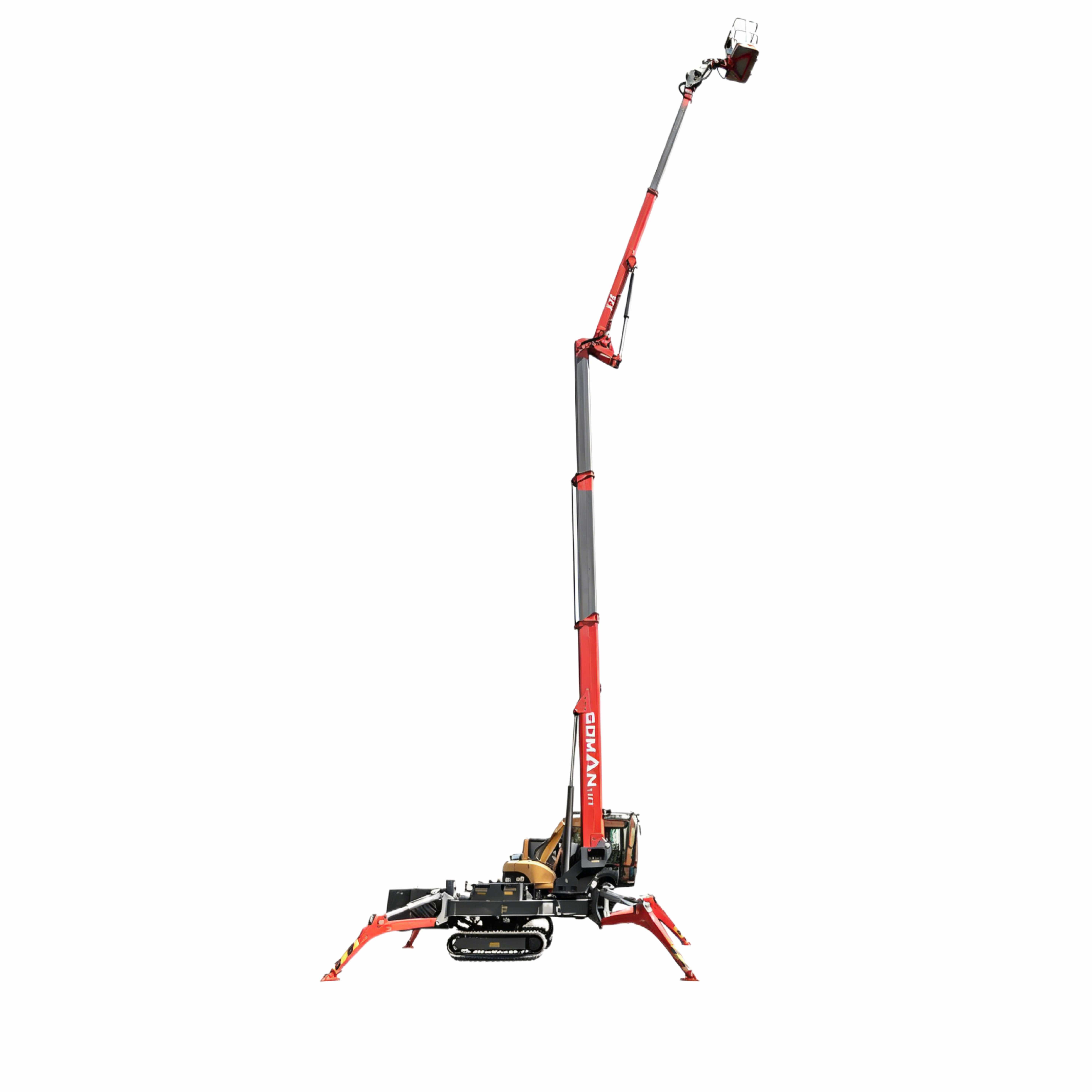

Articulated Spider Lift - X28
Category
Keyword
Articulating Spider Lift,Spider Lift
Max Working Height: 25.60m
Max Working Radius: 13.40m
Safe Working Load: 200kg
Overall Weight: 4980kg
- DESCRIPTION
- Standard
- Application Cases
-
Parameter/Model X28 Max. Working Height 28.14m Max. Platform Height 26.14m Load Capacity 230kg Max. Horizontal Reach 16.00m Basket Rotation 180° Turret Rotation 360° Continuous/Non-continuous Work Platform Dimensions 1.2/1.5×0.8×1.1m (Basket size customizable) Stowed Length 6.63/5.87m Stowed Width 0.91m Stowed Height 2.10m Travel Speed 0-2.0km/h(0-0.55m/s) Max. Working Grade 20% Max. Climbing Gradient 30% Total Weight 4612kg Power 18.2kw Electric Motor 220V/2.2kw -
Power Configuration Diesel engine + Battery / Lithium battery + 220/380V AC (3-power or 2-power) -
Articulated Spider Lift - X28
