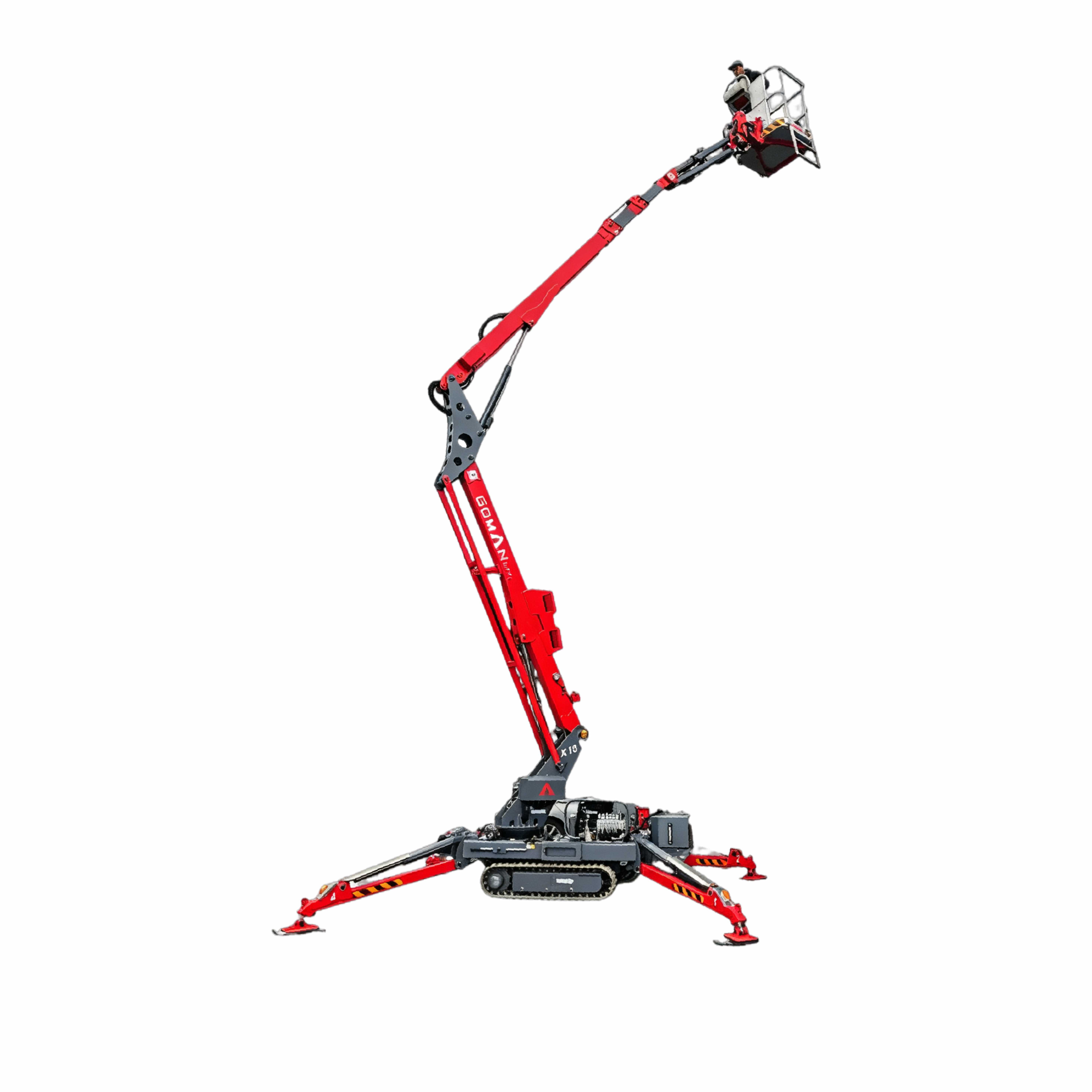

Articulated Spider Lift - X18
Category
Keyword
Max Working Height: 18.20m
Max Working Radius: 16.20m
Safe Working Load: 200kg
Overall Weight: 2390kg
- DESCRIPTION
- Standard
- Application Cases
-
Parameter/Model X18 Max. Working Height 18.20m Max. Platform Height 16.20m Load Capacity 230kg Max. Horizontal Reach 7.60m Platform Rotation 180° Turret Rotation 360° non-continuous Work Platform Size 1.2/1.5×0.8×1.1m (customizable work basket size) Stowed Length 4.78m Stowed Width 0.80m Stowed Height 1.99m Travel Speed 0-2.5km/h (0-0.69m/s) Max. Working Gradeability 20% Max. Climbing Gradeability 30% Total Weight 2390kg Power 10.4kw Motor 220V/2.2kw -
Power Configuration Gasoline engine / Diesel engine + Battery / Lithium battery + 220V AC (3-power or 2-power) -
Articulated Spider Lift - X18
