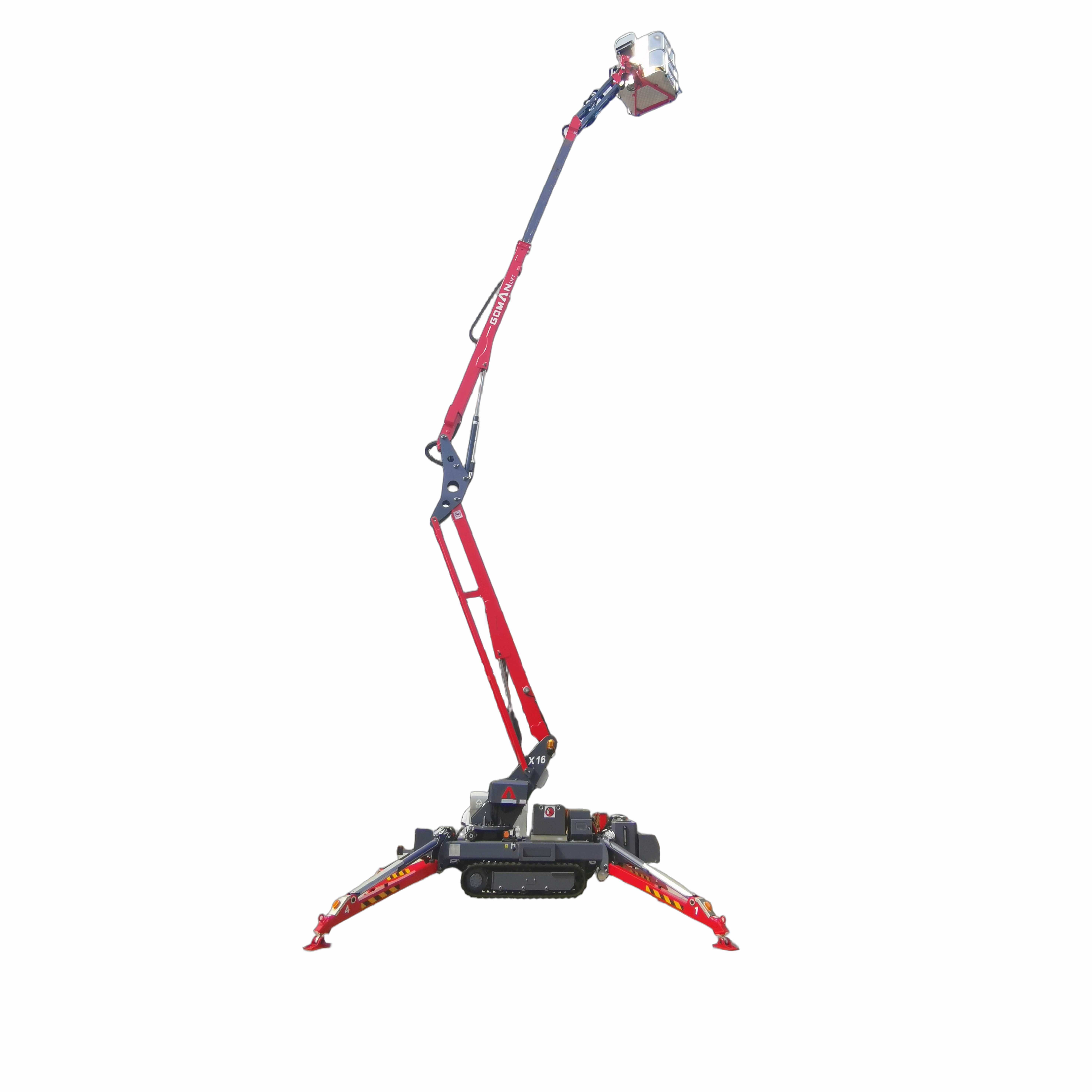

Articulating Spider Lift X16
Category
Keyword
Articulating Spider Lift,Spider Lift
Max Working Height: 16.30m
Max Working Radius: 14.30m
Safe Working Load: 200kg
Overall Weight: 2200kg
- DESCRIPTION
- Standard
- Application Cases
-
Parameter/Model X16 Max. Working Height 16.30m Max. Platform Height 14.30m Load Capacity 230kg Max. Horizontal Reach 7.30m Platform Rotation 180° Turret Rotation 360° non-continuous Work Platform Size 1.2/1.5×0.8×1.1m (customizable work basket size) Stowed Length 4.91m Stowed Width 0.80m Stowed Height 1.97m Travel Speed 0-2.5km/h (0-0.69m/s) Max. Working Gradeability 20% Max. Climbing Gradeability 30% Total Weight 2200kg Power 10.4kw Motor 220V/2.2kw -
Power Configuration Gasoline engine / Diesel engine + Battery / Lithium battery + 220V AC (3-power or 2-power) -
Articulating Spider Lift X16
