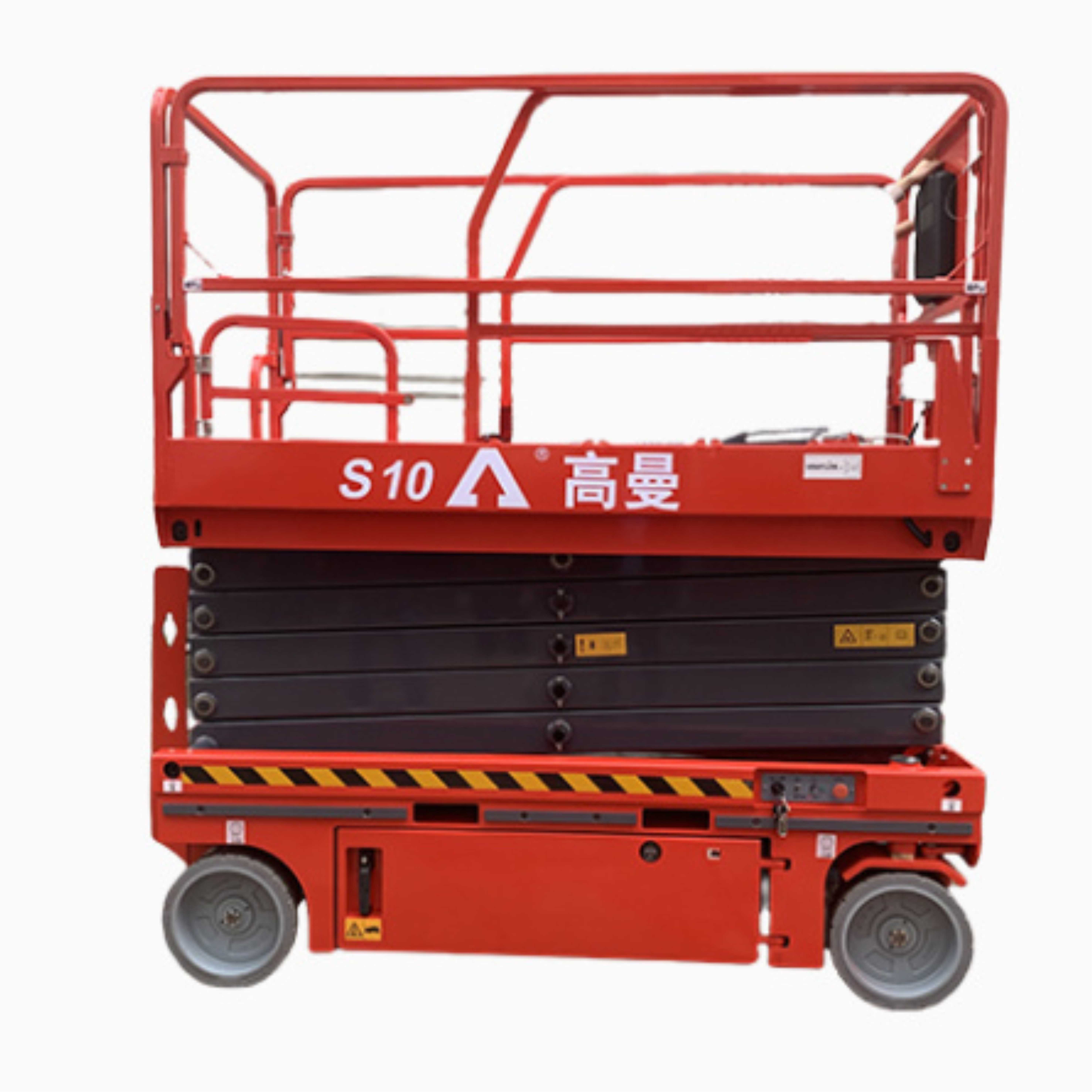

Wheeled Self-Propelled Scissor Lift-S10
Category
Keyword
- DESCRIPTION
- Standard
- Application Cases
-
Parameter/Model S10 Max. Working Height 12.00m Max. Platform Height 10.00m Load Capacity 320kg Safe Working Load of Extension Platform 113kg Platform Dimensions 2.27×1.12m Platform Extension Dimensions 0.90×1.12m Stowed Height (Guardrail Raised) 2.44m Stowed Height (Guardrail Folded) 1.92m Stowed Length 2.435m Stowed Width 1.15m Power 24V/3.3kW Travel Speed (Raised) 3.5km/h Travel Speed (Folded) 0.8km/h Lifting/Lowering Time 45/36 sec Max. Climbing Gradeability 25% Battery 4×6V/240Ah Max. Working Grade (EU/US Standards) 1.5°/3°, 2°/3° Tire Size Φ381mm×127mm Total Weight 2620kg -
Max Working Height: 12.00m
Max Platform Height: 10.00m
Safe Working Load: 320kg
Overall Weight: 2620kg
-
Wheeled Self-Propelled Scissor Lift-S10
