Wheeled Self-Propelled Scissor Lift

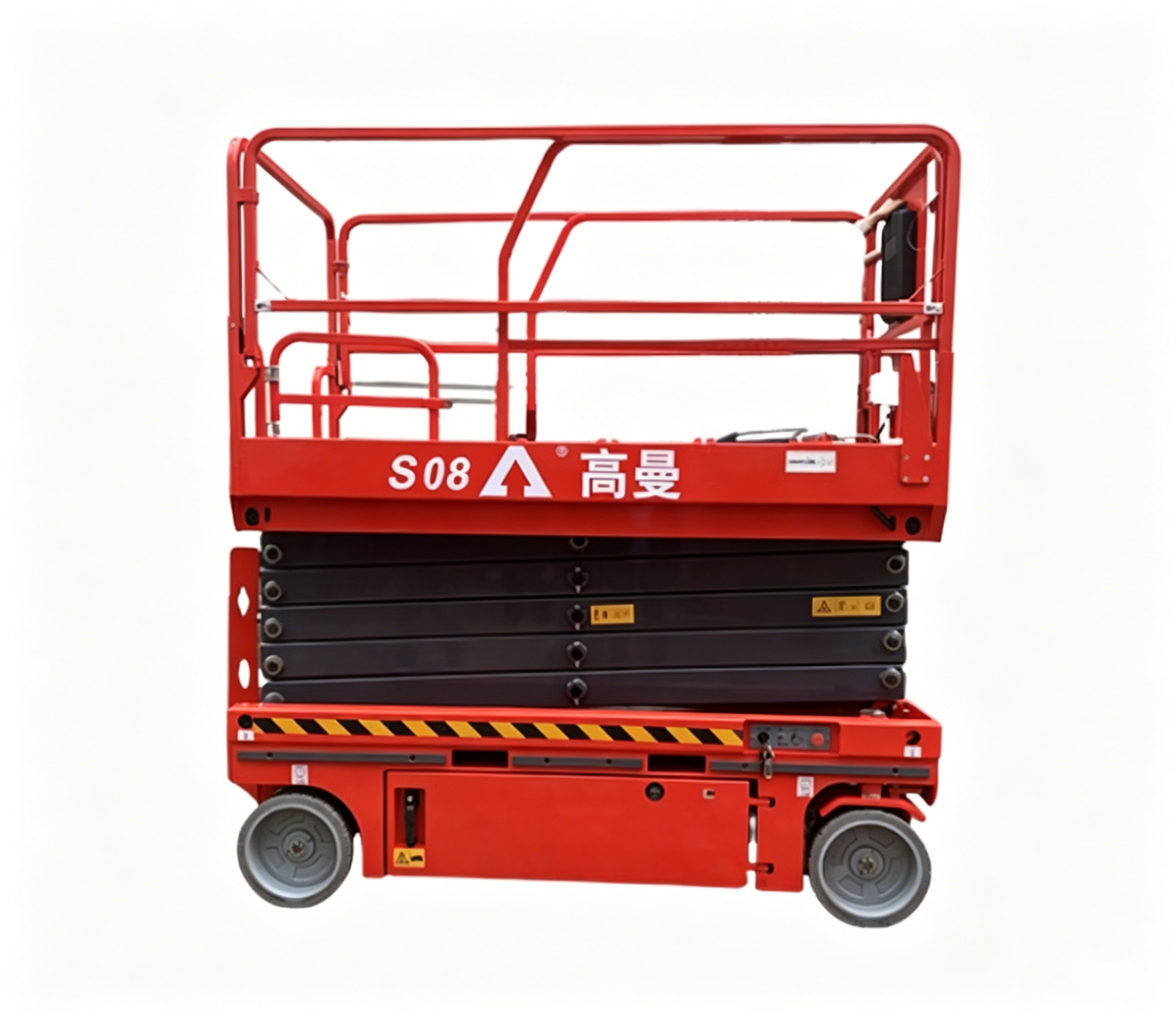

Wheeled Self-Propelled Scissor Lift-S08N

Category

Keyword

Max Working Height: 10.00m

Max Platform Height: 8.00m

Safe Working Load: 230kg

Overall Weight: 2015kg

Consultation Hotline:

Parameter/Model	S08N
Max. Working Height	10.00m
Max. Platform Height	8.00m
Load Capacity	230kg
Safe Working Load of Extension Platform	113kg
Platform Dimensions	2.27×0.81m
Platform Extension Dimensions	0.90×0.81m
Stowed Height (Guardrail Raised)	2.32m
Stowed Height (Guardrail Folded)	1.89m
Stowed Length	2.435m
Stowed Width	0.81m
Power	24V/3.3kW
Travel Speed (Raised)	3.5km/h
Travel Speed (Folded)	0.8km/h
Lifting/Lowering Time	28/40 sec
Max. Climbing Gradeability	25%
Battery	4×6V/225Ah
Max. Working Grade (EU/US Standards)	1.5°/3°, 2°/3°
Tire Size	Φ305mm×100mm
Total Weight	2015kg
