Crawler Scissor Lift

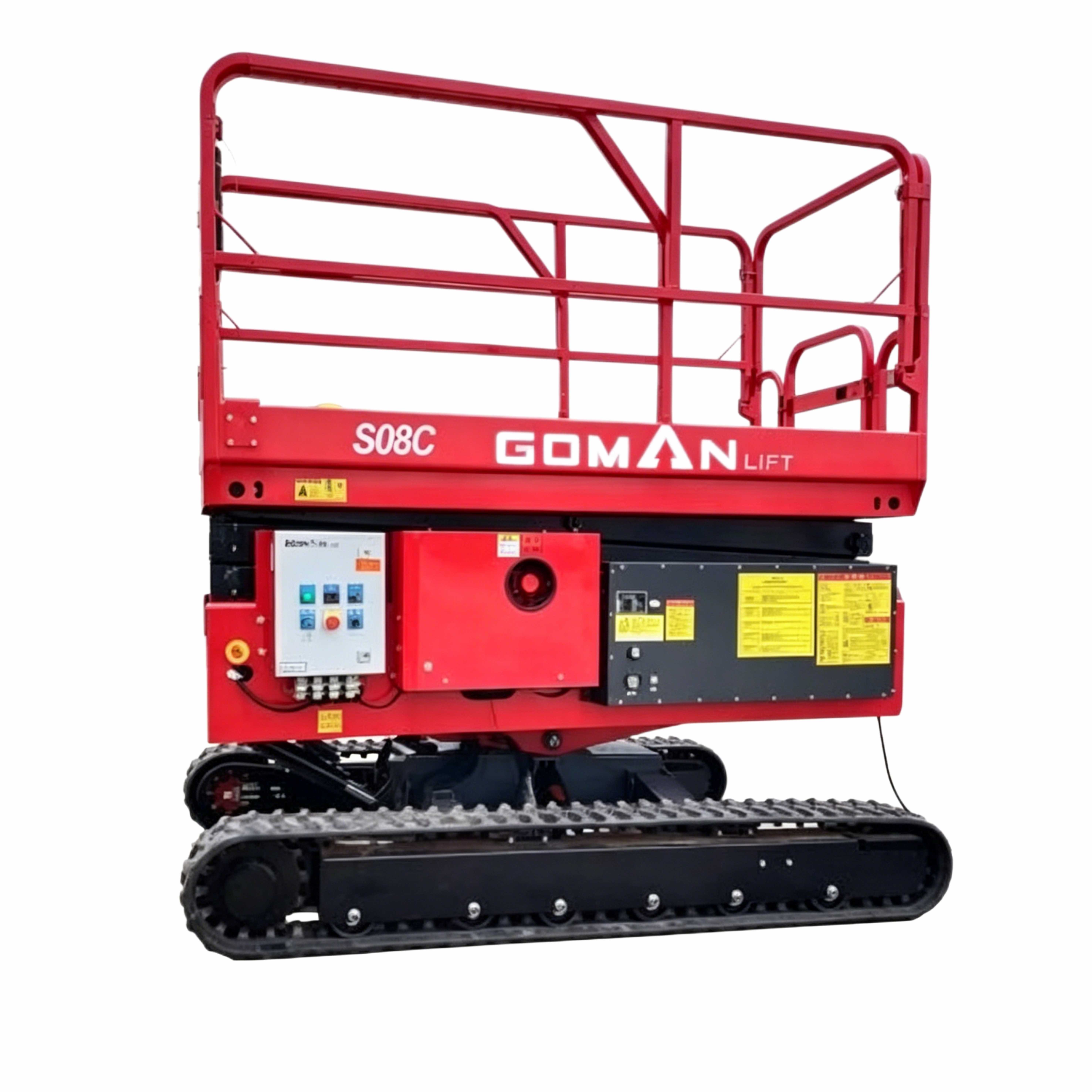

Crawler Scissor Lift-S08C

Category

Keyword

Crawler Scissor Lift,Scissor Lift

Max Working Height: 10.50m

Max Platform Height: 8.50m

Safe Working Load: 230kg

Overall Weight: 2500kg

Consultation Hotline:

Parameter/Model	S08C
Max. Working Height	10.5m
Max. Platform Height	8.5m
Load Capacity	230kg
Safe Load of Extension Platform	113kg
Work Platform Dimensions (L×W×H)	2.30m × 1.11m × 1.08m
Extension Platform Dimensions (L×W×H)	0.90m × 1.11m × 1.08m
Stowed Height (Guardrail Raised)	2.33m
Stowed Height (Guardrail Folded)	1.82m
Stowed Length	2.52m
Stowed Width	1.69m
Travel Speed	0-2.5km/h
Lifting/Lowering Time	45/30 sec
Max. Climbing Gradeability	36%
Max. Working Gradeability	0-2.5km/h*
Travel Mode	Rubber Crawler
Battery & Capacity	Lithium Battery 24V/364AH
Total Weight	2500kg
Power Options	Lithium / Gasoline Engine
