Insulated Tracked Lift

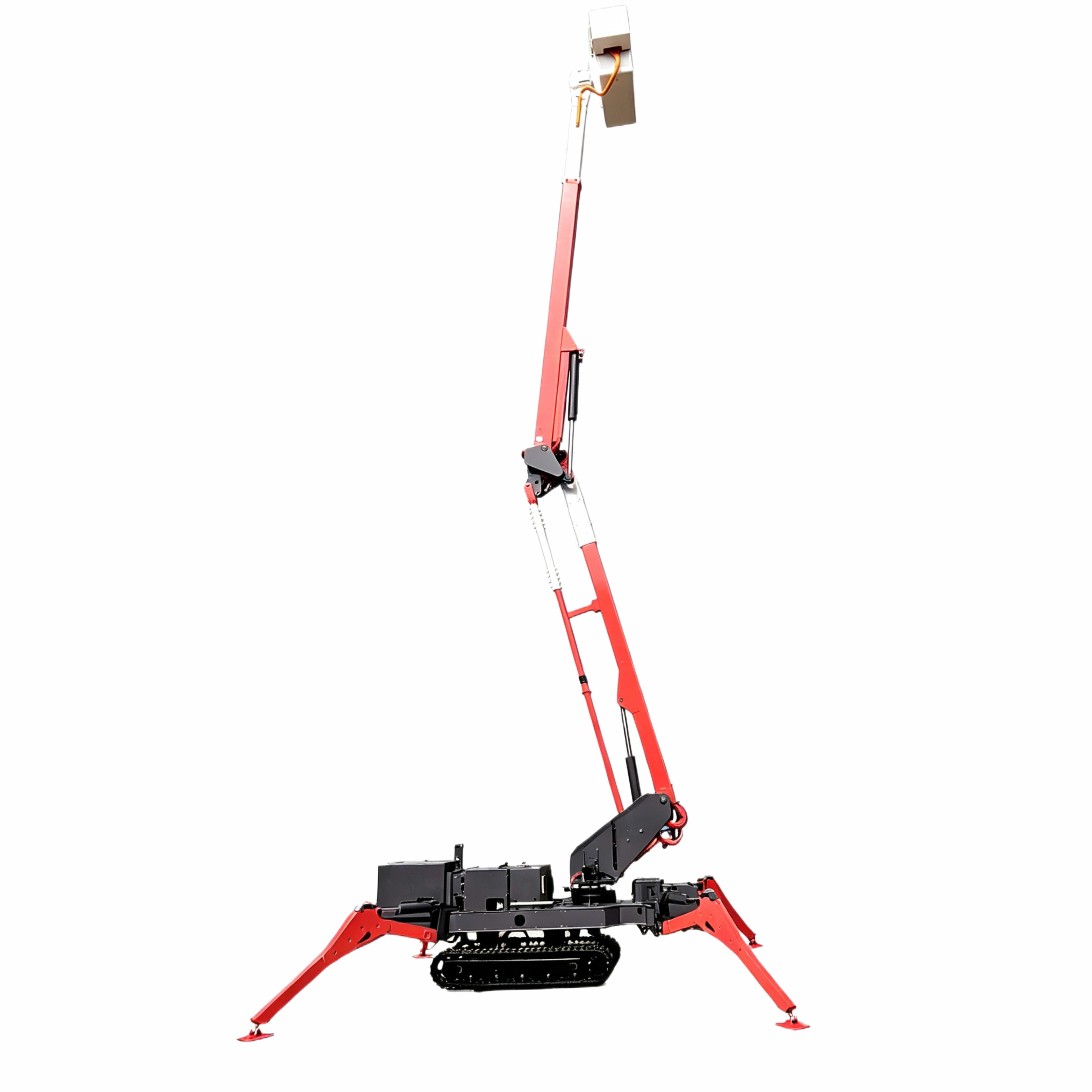

Insulated Tracked Lift-X17E

Category

Keyword

Insulated Tracked Lift,Tracked Lift

Max Working Height: 17.3m

Max Working Radius: 9.8m

Safe Working Load: 230kg

Overall Weight: 3900kg

Consultation Hotline:

Parameter/Model	X17E
Working Voltage Level	46kV
Rated Load of Work Basket	180kg
External Basket Surface Withstand Voltage	No flashover or puncture (0.4m, 50kV/1min)
Internal Basket Layer-to-Layer Withstand Voltage	No flashover or puncture (0.4m, 50kV/1min)
Work Basket Type	Single-person single basket
Work Basket Dimensions (L×W×H)	0.6m×0.6m×1.1m
Work Basket Rotation Angle	180°
Max. Working Height	17.3m
Max. Working Radius	9.8m
Upper Insulating Arm Effective Insulation Length	1.00m-3.05m
Lower Insulating Arm Effective Insulation Length	±0.3m
Turret Rotation	360° continuous
Outrigger Type	Frog-type
Machine Weight	3900kg
Outrigger Leveling Mode	One-touch leveling + Independent control of each outrigger
Insulating Arm Material	FRP insulating material
Whole Machine Leakage Current @ 20kV	≤500μA
Work Basket Leveling Mode	Hydraulic automatic leveling
Engine / AC Power	Diesel Engine 18.5kW / 220V
Adjustable Chassis Width (m)	0.3m
Stowed Length (m)	7.60m
Stowed Width (m)	1.34m
Stowed Height (m)	2.19m
Chassis Ground Clearance (m)	0.2m
Max. Allowable Working Grade (%)	15
Max. Climbing Gradeability (%)	30
Chassis	Rubber crawler with temperature control
Interlock Device	Outrigger safety interlock
Upper Boom Movement	Hydraulic control
Lower Travel / Outrigger Operation	Wireless remote control
